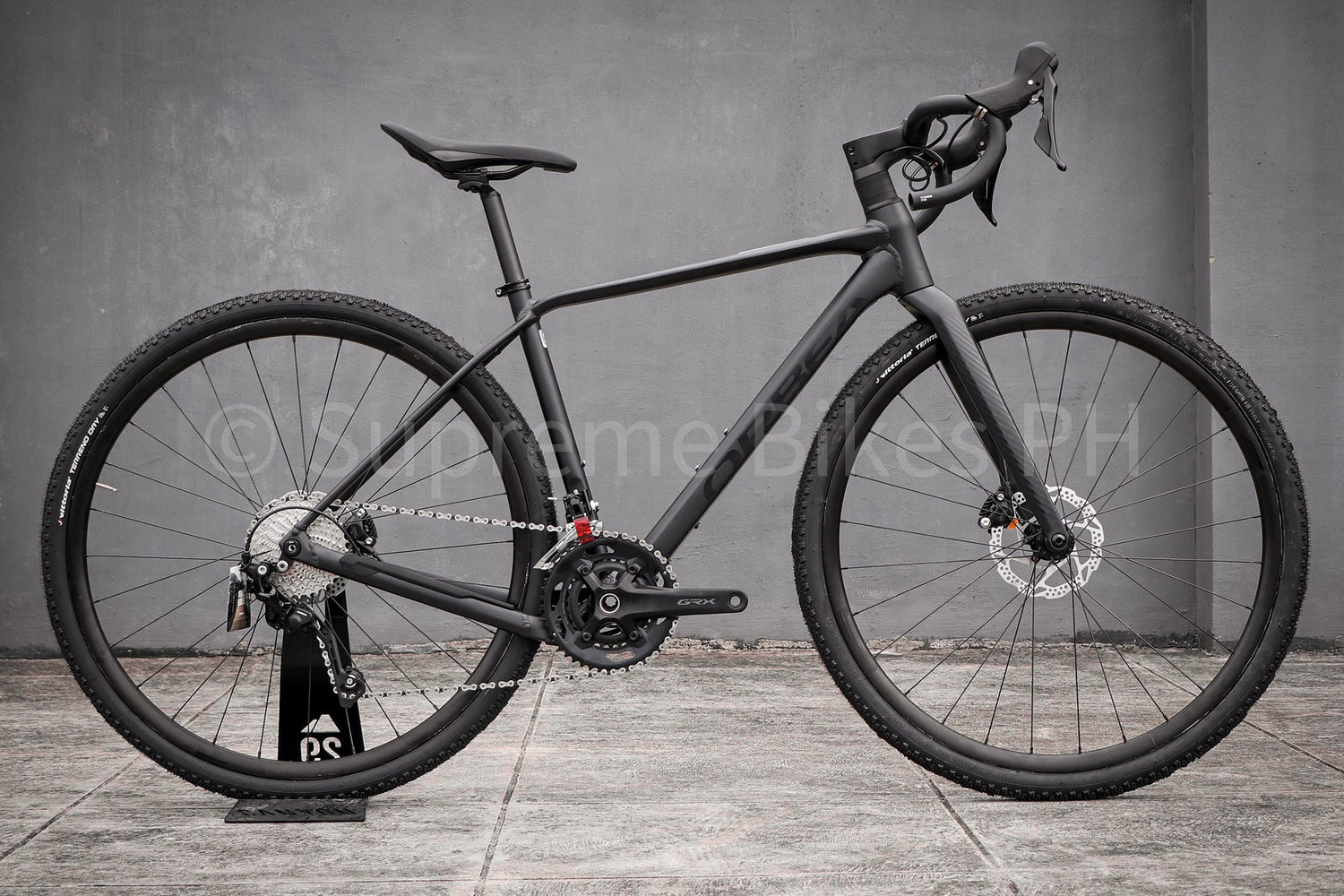

gravel bike orbea terra h40 Orbea Terra H40 Alloy GRX Gravel Bike

The Orbea Terra H40 Disc Gravel Bike offers a versatile performance across a multitude of surfaces and promotes this to a vast spectrum of riders thanks to its affordable price point. Feeling completely at home on gravel, dirt or road, the Terra H40 makes for a trusty companion when exploring the wilderness, racing in the local cyclocross league or when winter training.

The aluminium frame is hydroformed and triple-butted to save weight and increase strength and grants a reactive ride that is infused with natural rough surface resilience. The partnering carbon fork eliminates vibrations while also increasing steering accuracy for technical riding scenarios. Realised with a balanced geometry, the frameset places the rider in a powerful and efficient position that is also comfortable to facilitate long hours in the saddle.

A robust Blackjack Ready GR wheelset tackles irregular and rutted paths with consummate ease while also being lively enough to permit surging accelerations. The partnering Vittoria tyres complement by affording grip, cushioning and low rolling resistance across a gamut of terrain.

The reliable 10-speed Shimano gears and double chainring collaboration allow the rider to tackle any landscape with aplomb before the hydraulic disc brake configuration completes thoroughly by bestowing accurate and reliable stopping power, no matter the conditions.

• A dedicated gravel bike that also performs admirably on the road when winter training or within cyclocross races
• Orbea hydroformed, triple-butted aluminium frame is light, responsive, nimble and resilient
• A full carbon fork reduced surface vibrations and increases steering accuracy
• Wide tyre clearance allows the use of different tyre widths to suit the terrain
• Integrated mudguard mounts offer all weather protection
• A finely tuned All Road geometry grants control and balance across dirt tracks, gravel paths and roads
• Blackjack Ready GR wheelset is hardy and low maintenance but lively and reactive
• Shimano 10-speed gears are accurate and dependable
• Double front chainring configuration offers a vast range of gear ratios
• Shimano RX400 hydraulic disc brakes grant powerful stopping power in a modulated fashion

Technical Specs

• Frame - Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8" - 1,5", BB 68mm – BSC English, Thru Axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27,2mm seat tube, MMS system
• Fork - Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system
• Crankset - Shimano GRX RX600-10 30x46t
• Headset - FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
• Handlebar - OC1 All Road, reach 80mm, drop 125mm, flare 12º
• Stem - OC1 31.8mm interface -6º
• Shifters - Shimano ST-RX400
• Brakes - Shimano RX400 Hydraulic Disc
• Cassette - Shimano Tiagra HG-500 11-34t 10-Speed
• Rear derailleur - Shimano RD-RX400
• Front derailleur - Shimano GRX RX400
• Chain - KMC X10
• Wheels - Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H
• Tyres - Vittoria Terreno Dry Gravel G2.0 TNT 700x38c
• Seatpost - OC2 Carbon 27.2 Offset 20
• Saddle - Selle Royal Seta RS
• Handlebar - Plugs Orbea Eva
• Front Wheel Axle - Orbea Thru Axle 12x100mm M12xP1.5 Hollow
• Rear Wheel Axle - Orbea Thru Axle 12x142mm M12xP1.5 Hollow
